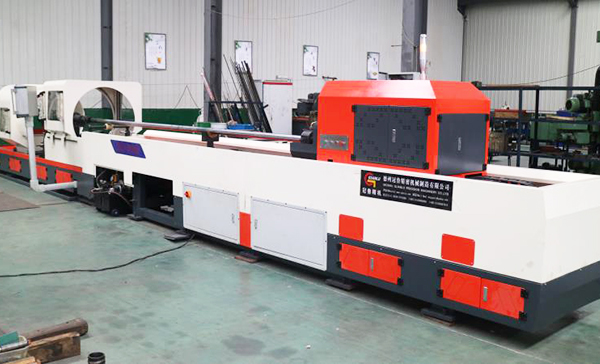

PLC Deep Hole Honing Machine
Home » Products » Deep Hole Honing Machine » PLC Deep Hole Honing Machine
Machine Main Parameters of PLC Deep Hole Honing Machine

Item

Specification

Machine name

Horizontal deep hole honing machine

Machine Model

2M2135×10000mm

Deep hole honing machine diameter range

Φ40-Φ350mm

Deep hole honing length

Max. 10000mm

Center height: carrier body guide surface to honing bar

350mm

Clamping jobs diameter range

Φ60-Φ400mm

Honing box spindle speed range

25-250r/min stepless

Honing box spindle reciprocate speed range

1-20m/min  stepless

Honing box motor power

7.5KW(servo motor)

Coolant pump flow

100L/min(adjustable)

Coolant box volume

950L

Honing head expanding system oil pump motor power (servo control)

0.75Kw

Coolant pump motor power

0.25Kw

Reciprocate motor power

5.5Kw

Machine Usage of PLC Deep Hole Honing Machine

The machine is used for cylindical jobs honing process.

Honed hole accuracy: IT6-IT.7

Honed hole roughness: Ra0.2-Ra0.4μm.

The machine can be partical honing, reparing the cylinders.

Newly Design Advantage of PLC Deep Hole Honing Machine

Honing head expansion controlled by servo motor

Expansion pressure is steady and reliable.
Can inspect the workpiece inner hole automatically, which can realize partical honing, enhance the working efficiency.
Servo control can be controlled through CNC pannel, diginal read, adjustment accuracy.

Honing oil feeding(outside and inside combined)

Honing oil go inside through honing bar, which will have big force to wash the honing dirties away.
Inside honing oil feeding can make up the long workpiece honing defect.

Honing Box of PLC Deep Hole Honing Machine

Honing box

Mounted on carrier.

Honing box motor

7.5KW (Servo motor)

Honing box spindle speed range

25-250r/min stepless
