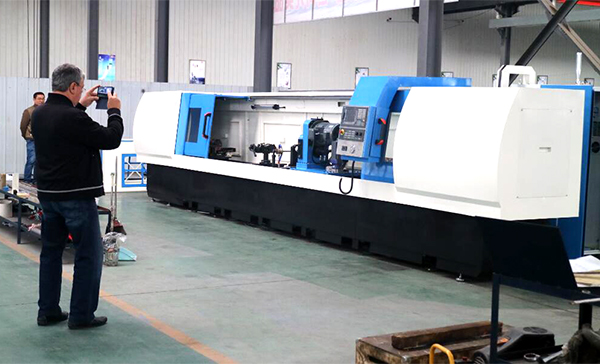

CNC Deep Hole Honing Machine
Home » Products » Deep Hole Honing Machine » CNC Deep Hole Honing Machine
Machine Model and Name

Name: CNC Horizontal Deep Hole Honing Machine

Model: 2MK2115x2000mm

Machine Specification of CNC Deep Hole Honing Machine

Deep hole honing machine diameter range: φ16-φ150mm

Deep hole honing length Max: 2000mm

Center height:carrier body guide surface to honing bar: 200mm

Clamping jobs diameter range: φ30-φ250mm

Honing box spindle speed range: 0-500r/min stepless

Honing box spindle reciprocate speed range: 0-15m/min stepless

Honing box motor power: 5.5KW (inverter motor)

Honing head expand hydraulic system oil pump max pressure: 4Mpa

Coolant pump flow: 50L/min

Coolant box volum: 950L

Honing head expanding hydraulic system oil pump motor power: 1.1KW

Coolant pump motor power: 1KW

Reciprocate motor power: 2.2kw

Machine Character of CNC Deep Hole Honing Machine

2M2115 deep hole honing machine is suitable for cylindrical jobs honing and polish process, and also works for precision parts, after worked by the machine, the hole accuracy can be up to IT6~IT7, surface roughness can be up to Ra0.2-0.4μm. It adopts partical honing, the parts can be modified by processing the taper, ellipticity and local aperture error, the honing machine is an ideal device for high precision and high efficiency, we adopts PLC control of Delta, running steady, easy to adjust the speed. It is easy to warranty the hole size accuracy and reduce labor intensity.

When working, the machine use sandy stone to hone, the honing bar box reciprocate move, which can make sure the efficient. The machine can be used after gun drilling machine.

Machine Structure of CNC Deep Hole Honing Machine

Honing box: We use 5.5kw motor drive spindle box to send turning and torque to the honing bar, tuning speed is 0~500r/min.

Carrier recipracate system: Carrier recipracate movement driven by servo motoring gear box.

Honing head support frame: Position in front of the carrier working table, installed on the rail way, height can be adjusted.

Coolant system: Coolant system use three grades filtering,filtering size is less than 30μm

Machine bed body: Use strongly machine body, carrier body installed linear railway, high long lifespan and high precision.

Electric part: The machine use CNC system control, automatically control.

2M2125A Deep Hole Strong Honing Machine
2M2125A Deep Hole Strong Honing MachineThis deep-hole strong honing machine is specially for all kinds of cylinder shaped workpiece, worked by this machine, the accuracy is up to IT7, surface roughness is up to Ra0.2-Ra0.4um. This machine can be part honing, so as to repair the parts...

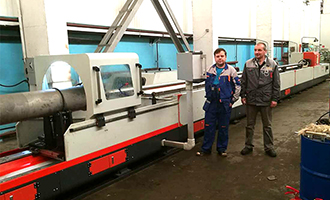

Deep Hole Honing Machine with Ten Meters for Hydraulic Cylinder Repairing
