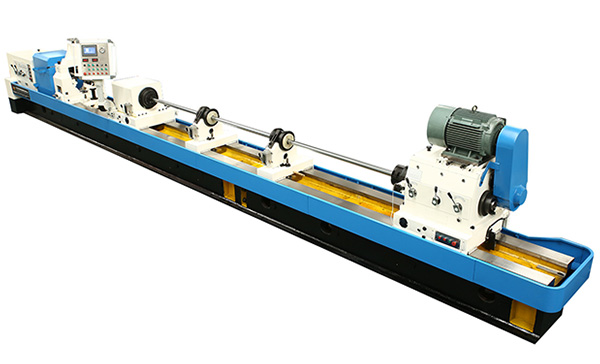

BTA Deep Hole Drilling Machine for Hydraulic Cylinders
Home » Products » Deep Hole Drilling and Boring Machine » BTA Deep Hole Drilling Machine for Hydraulic Cylinders
Machine Brief of BTA Deep Hole Drilling Machine for Hydraulic Cylinders

Machine processing capability

Boring diameter range
Drilling diameter range

Max. Φ 200mm
Max. Φ 100mm

Max. Hole Boring depth

4000mm

Max. Workpiece length

4000mm

Hole boring process

Chips go out through workpiece’s cored hole.

Main Components of BTA Deep Hole Drilling Machine for Hydraulic Cylinders

Machine base, worktable, and other basic parts

HT300 iron, resin sand precise casting.

Twice timing treatment, high rigidity and stability.

Tooling infeed system (Z-axis)

Adopts the servo motor driving the T type leading screw through the
reducer structure. The speed is adjustable(stepless).

Drill bar rest

1 group, supporting the drill bar.

Coolant system

To supply the oil for the tooling, consist of oil tank and 3 groups high press pumps.

Oil pressure head

The oil pressure head is used for cutter tooling guiding, oil supplying, supporting.
The oil pressure head is driven by ordinary motor to make axial movement.
The oil pressure head spindle can be pushed out and retracted under the control of the hydraulic system.
The oil pressure head can be automatically locked on the machine bed by the hydraulic pressure plate.
